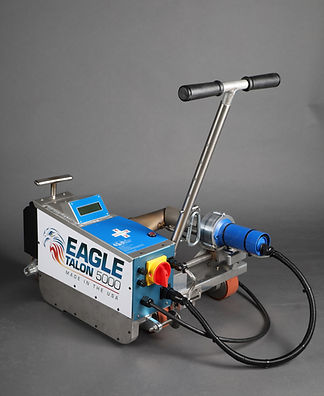

Eagle Talon 5000
Heat Welder

Eagle Talon 5000

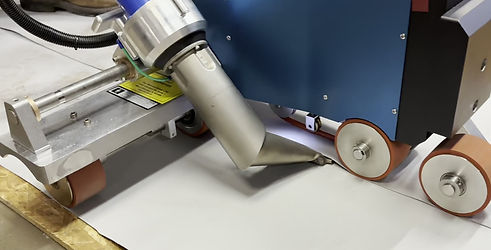

The Eagle Talon 5000 automatic hot air welder is designed to weld all types of thermoplastic membranes (TPO, PVC, CSPE). This machine is extremely “user friendly” easy to use tool. It features accurate digital temperature control by using a thermocouple connected to a robust microprocessor giving one a closed loop system. It also features independent variable temperature and speed controls. The angled display makes reading in sunlight easier. There is also a LED work light in the welding nozzle area to facilitate directional control under conditions of dark or cloudy days.
Features
This welding system features an easy-to-use digital temperature control that maintains heat within ±2°F of the selected setting for consistent performance. A closed-loop electronic system provides precise speed control, automatic start/stop operation, adjustable airflow from 70%–100%, and built-in protections against low voltage and power spikes. Operators benefit from top-mounted controls, digital monitoring for runtime and footage tracking, plain-text diagnostic messages, integrated alignment adjustments, adjustable guide handle height, quick-change plug-in heat elements, and added stability through integrated weights. Additional features like automatic cool-down functionality, LED work lighting, and visual temperature indicators help improve efficiency and ease of operation on the jobsite.

Performance Specs
Model: Talon 5000
Voltage: 220/230V
Wattage: 4600 Watts
Air Flow: 16-21 CFM (450-600 L/min)
Temp: Ambient – 1200F (650 C)
Weight: 0-25 ft/min (7.6 meters/min)
Options & Accessories: 77 lbs (35kg)
